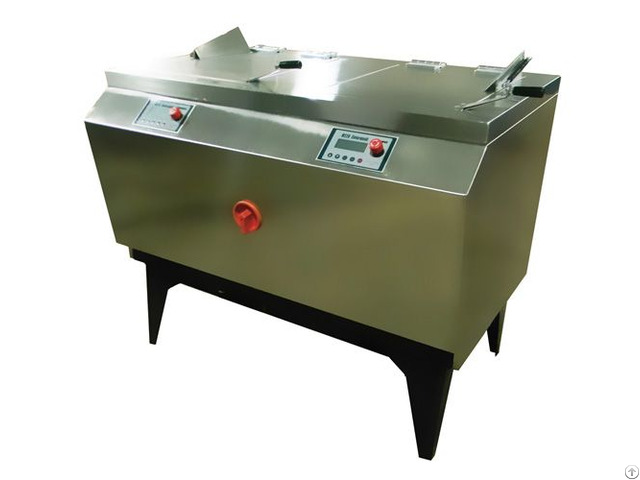

Qinsun Instrument Washing Fastness Tester Sw 12m - China

QINSUN instrument Color Fastness to Washing can be used to examine the dye washing color fastness capability for dyeing industries, dye industries, textiles inspection department and research departments.

And complies fulfill with the requirement of the common test standards, such as ISO 105 C01~06, ISO 105D01, AATCC 61(1A－5A), BS, JIS, etc.

QINSUN instrument Washing Fastness Tester SW-8A/12A Washing Fastness Tester main test fabric dyeing wash color fastness which meet with AATCC 61(1A-5A), 132, ISO 105-C01~C05, ISO105-D01 GB/T3921.1~5, GB/T5711, BS1006 - It can also be used to test the color fastness of dyes.

.

Follows are QINSUN instrument Color Fastness to Washing specification : Chamber temperature and heating time are controlled by MCU with PID function, more excellent stability and avoid over-heating;

Double working chamber, the temperature, working time, rotation state and drainage of both chambers are controlled independent;

Chamber temperature and heating time are controlled by MCU with PID function, more excellent stability and avoid over-heating;

Equipped with SIEMENSTM solid-state relay to control heater, no mechanical touch point, keep constant temperature, low noise, and more endurable;

Digital timer with audible warning after cycle time is over;

Fitted with over temperature protection device to shut down the unit in case of overheating;

Chamber temperature and cycle time pre-settable and duly displayed on the LED panel;

Stainless steel construction of water bath chamber, test chamber and washing pots;

Equipped with water level detection and protection system for two working chamber to avoid damage for low water level.

Application Of Washing Fastness Tester

Washing Fastness Tester is mainly used for testing textile washing fade discoloration experimental instrument, widely used in textile industry application, the main principle of washing fastness tester is simulated water situation, analysis the washing fastness of textiles.

The face and all the liquid contacted parts are made by high quality stainless steel.

The rotation frame derived by the gear wheels.

The active gear fixed to the interior work room.

Pull out the active gear and rotation frame and let active gear joints with passive gear, then the rotation frame can rotates.

And if pull in the active gear, the active gear separate away from the passive gear.

At this time, we can take out the rotation frame.

And clean the dirt in the workroom.

It also need consumable .

ps: (WLJCDM809)
