Jd60a And Jd60b Television Detection System For Drainage Pipeline - China
price: 2000.00 Dollar US$
Component
Crawler, camera, controller, cable tray
Main functions
Mainly used for various pipeline TV inspection (hereinafter referred to as CCTV inspection), without shaft, can be on the pipeline of functional and structural defects were accurately detect.
Judging by data processing software to collect data.
Analysis, the standard formation testing report and for pipeline inspection, maintenance, evaluation and provide a reliable basis.

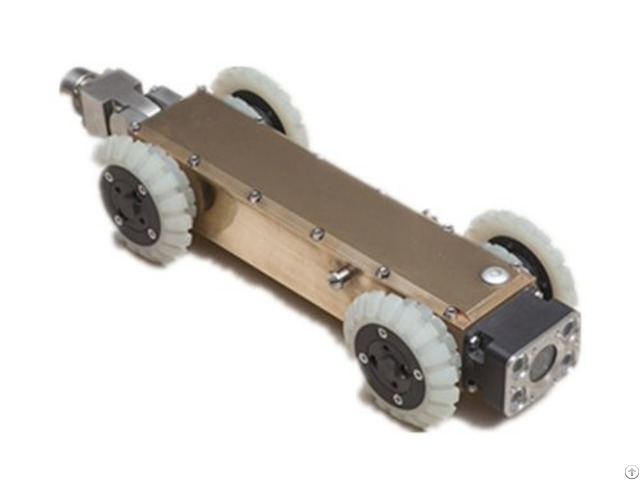

1 - JD30 crawler Model JD30
Applicable pipe diameter 100mm-300mm
Driving mode 4 wheel drive (single 60W motor)
Lifting frame -
size 384mm×89mm×60mm
weight 6kg
Protection level IP68
working temperature -10°C～50°C
Wheel
type Small wheel Middle wheel Big Wheel
diameter 60mm 86mm 150mm
Texture of material Copper wheel Wear resistant tyre Aluminum wheel Wear resistant tyre Aluminum wheel Wear resistant tyre
Number 4 numbers 4 numbers 4 numbers
Extension Shaft
length 28mm 38mm
Number 4 numbers 4 numbers
Major Function
travel Forward, backward, adjustable speed
Climbing ability >=30degree
Lift -
Reverse protection Configure a reversing switch, a rearview camera, prevent the cable in the wheel
slope measurement Can measure the internal slope gradient, draw the slope curve
Rollover alarm In a rollover risk alarm
Positive pressure protection Internal nitrogen gas, pressure 1.5Bar 2 - JD60 crawler
