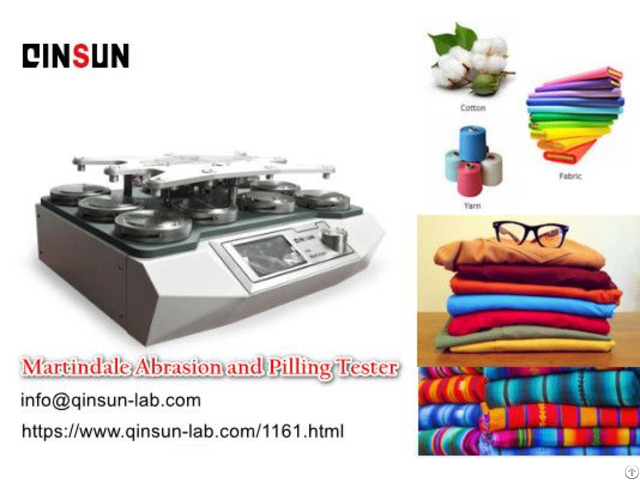

Iso 12945 Martindale Abrasion And Pilling Tester - China

iso 12945 martindale abrasion and pilling tester The Martindale Pilling Tester tests the abrasion and pilling properties of various plants.

Under a certain pressure, the specimen is subjected to continuous commutation friction with a specified abrasive, and the degree of wear and pilling is evaluated in comparison with standard parameters.

Touch screen control with fully functional programmer, pre-programmable batch and total counts, individually set counts for each test head; 4 speeds including standard speed can be selected.

Conforms to standards.

ASTM D4970 ISO 12945.2, GB/T 4802.2/13775/21196.1/2119 6.2 ASTM D4966 ISO 12947 FZ/T 20020 BS 3424-24/5690 ISO 12947.1/12947.2 M&S P17/P19/P19C NEXT 18/18a/18b ISO 5470-2 IWTO-40 JIS L1096 8.17.5 Method E Woolmark TM 112/196 BS EN 388/530/13770 ISO 20344 Technical parameters.

1 - Number of work stations: 9 positions;

2 - Counting range: 0~999999 times

3 - Maximum moving range: horizontal 60.5±0.5mm vertical 24±0.5mm

4 - Pressurized object mass.

a.

Gripper: 200±1g

b.

Clothes specimen weight: 395±2g

c.

Furniture decorative sample weight: 594±2g

d.

Stainless steel butterfly: 260±1g

5 - Effective friction diameter of the grinding block

A type 200g (1.96N) friction head (9KPa) ¢ 28.8-0.084mm

B type 155g (1.52N) friction head (12KPa) ￠ 90 -0.10mm

6 - Gripper and grinding table relative movement speed: 20-70r / min (adjustable)

7 - Loading sample pressure hammer mass: 2385±10g ps: (WLJCDM809) tag:
