Chicken Manure Organic Fertilizer Disc Granulation Process - China

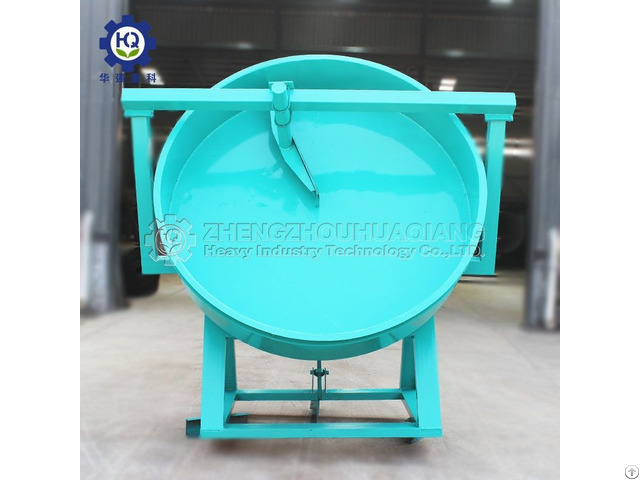

The chicken manure organic fertilizer production process of the disc granulator machine is intuitive to operate and can be mastered at any time.

If any abnormality is found, it can be adjusted in time.

The size of the particles is determined by the inclination and rotation speed of the disk.

And the inclination and rotational speed of the disc can be adjusted.

Therefore, the disc granulation has a wide range of granulation control, strong adaptability, and a very high ball forming rate, which can reach 70% to 90%.

The chicken manure organic fertilizer disc granulation process has short production process, simple structure, low investment and convenient operation, which is more suitable for small and medium-sized enterprises.

Let's take a look at the disc granulation process of chicken manure organic fertilizer.

1 - The processed chicken manure is directly transported to the raw material mixer.

2 - The chicken manure is transported to the disc homogenizer and evenly added to the rotating disc of the disc granulator machine.

The liquid component or an appropriate amount of water is sprayed through the liquid component distributor of the disc granulator.

The amount of liquid needed to form a ball.

3 - Transport to the organic fertilizer dryer and exchange heat with the heat of the hot blast stove.

4 - The dried particles are transported to the organic fertilizer cooler.

They are cooled by natural cold air or forced cold air.

5 - Then the particles are transported to the rotary drum screening machine, and the unqualified large particles are crushed by the pulverizer and then returned to the disc granulator machine for reformation.

6 - The qualified products after screening are transported to the coating machine for coating.

7 - The final particles are transported to the automatic packaging machine for weighing, packaging and storage.

In addition, common fertilizer granulators include: double roller granulator, drum granulator, disc granulator machine, new organic fertilizer granulator, new two-in-one organic fertilizer granulator, flat die pellet machine, ring die granulator, various granulators have their own production characteristics, used in pig manure organic fertilizer production line, npk production line, biological organic fertilizer production line and so on.
