Bently Nevada 330180 91 00 - China
price: 99.00 Dollar US$

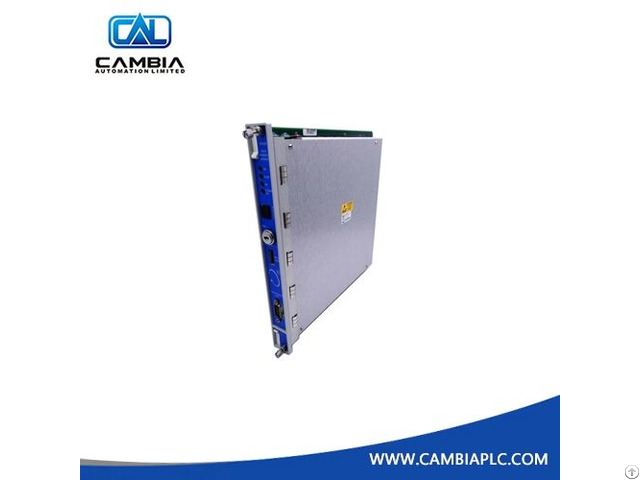

Bently Nevada 3500/82 Stator Insulation Monitoring System
Measure the leakage current of motors sized up to 7.5 kV and 1000 Amps, real time data measurements Features
• Accepts 3 HSCT, 3 HVS, and 3 4-20mA temp inputs
• Input frequency range: 40 to 70 Hz
• Front panel LEDs: OK, TX/RX, Bypass
• Output impedance 499Ω ±1%
• Output range HVS and HSCT:
o Dynamic: 1.6 to 10.4V, ±5%
o Bias: 6V ±5%
• Output range average temperature: 2.0 to 10.0V
• Output range sync: digital pulse 0 to 10.0V, ±5% Description
• Display instantaneous stator leakage current on each phase of the motor.
• Display compensated dissipation factor and change in dissipation factor from a given reference point.
• Display motor stator temperature and average temperature.
• Display line voltage and frequency data values.
• Retrieve historic data stored on board the monitor for data analysis.
• Set alarm levels for annunciation.
• Configure the temperature range and time period for learn and extend modes for temperature learning, and view the current learning state.
• View the number of temperature samples, vs.
operating temperatures, that builds the learning curve used for temperature compensation.
Product details :
In stock
Original package
condition: brand new Relevant product
