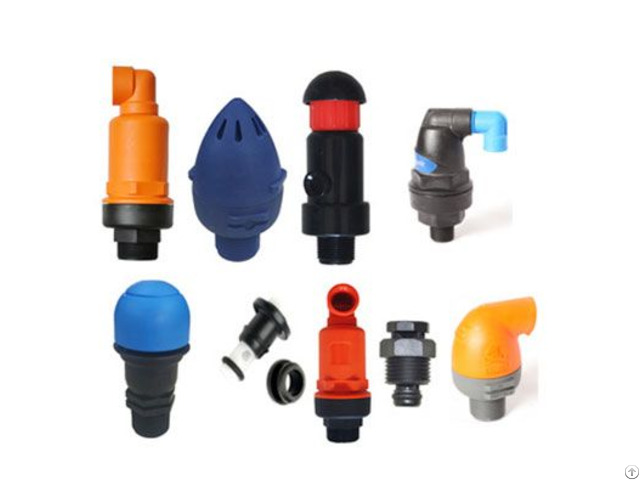

Air Relief Valve Irrigation Systems - China

Air relief valve irrigation systems Air relief valve Drip Irrigation Accessories Air Relief Valve supplier

Pressure Regulator China Features:

1 - Air & vacuum relief valve are applied to a variety of irrigation systems.

When water is injected to systems, a large amount of air is discharged from pipelines by the valve; while the water is emptied, the valve inhales a large quantity of air to prevent vacuum negative pressure.

2 - With advanced compound air dynamics design, valves can discharge air quickly, avoid air accumulation and formation of negative pressure.

There is good sealing performance at low pressure.

3 - There are BSP and NPT threads.

irrigation systems vacuum relief valve Application: Irrigation system pipe network: it can eliminate air in irrigation system and avoid negative pressure formation in downstream of water pump, the position along water delivery pipeline and upslope and downhill of pipeline.

Irrigation head: it is used to remove air and prevent negative pressure formation in filter and fertilizer injection device.

High part in irrigation pipeline: it is applied to exhaust air and prevent pipeline from being damaged by air accumulation in high place of system.

Air Relief Valve price Specifications:

S/N ITEM NO.

NAME AND SPECIFICATION Bag Qty (Pc) Quantity (Pcs/Ctn) CARTON SIZE (CM) G.

weight per carton(kg)

1 AV0112 Air Release Valve, 1/2", Material: ABS 100 1200 42*28*21 10

2 AV0134 Air Release Valve, 3/4", Material: ABS 10 180 54*35*28 15

3 AV0110 Air Release Valve, 1", Material: ABS 10 180 54*35*28 16

4 AV0234 Air Release Valve, 3/4" Material: PA6 10 56 54*35*28 16

5 AV0210 Air Release Valve, 1" Material: PA6 10 56 54*35*28 16

6 AV0232 Air Release Valve, 1-1/2" Material: PA6 10 56 54*35*28 18

7 AV0163 Air Release Valve, 2", Material: PA6 1 15 54*35*28 11.5

8 EV0110 Air Release Valve, 1"Male thread, Material: PA6 1 15 54*35*28 12

9 EV0150 Air Release Valve, 1-1/2" Male thread, Material: PA6 1 12 54*35*28 12

10 EV0163 Air Release Valve, 2" Male thread, Material: PA6 1 10 54*35*28 10

11 IV0134 Air Release Valve, 3/4" Male thread, Material: PA6 1 100 54*35*28 20

12 IV0110 Air Release Valve, 1" Male thread, Material: PA6 1 100 54*35*28 20

13 VE0134 Air Release Valve, 3/4" Male thread, Material: PA6 1 60 42*28*21 13

14 VE0110 Air Release Valve, 1" Male thread, Material: PA6 1 60 42*28*21 13

15 IE0134 Air Release Valve, 3/4"Male thread, Material: PA6 10 150 54*35*28 13 Technical data:

Item No.

Model Valve type Max.

working pressure(PSI) Sealing pressure(PSI) Air displacement(m³ /h) Air intake flow (m³ /h)

AV0112 1/2'' Air relief valve 150 6 0-35 m³ /h@0-6PSI -80-0 m³/h@-6-0PSI

AV0134 3/4'' Air & Vacuum Relief valve 150 5 0-50m³ /h@0-5PSI -67-0 m³/h@-6-0PSI

AV0110 1'' Air & Vacuum Relief valve 150 5 0-50m³ /h@0-5PSI -67-0 m³/h@-6-0PSI

AV0163 2'' Dual Acting Continuous 225 5 0-235m³ /h@0-5PSI -360-0 m³/h@-6-0PSI If you are finding Flat drip irrigation tape, Drip irrigation connector in China, we will be your best choose! We are a Arrow Dripper, Drip Irrigation and Main Line Accessories supplier in China.
