15m Big Diameter Scew Rotary Auger Drilling Machine - China

Product Description

Rotary Drilling Rig with 180 ° rotating is suitable for building foundation engineering into hole pile driving machinery.

Rotary Auger Drilling Machine is mainly suitable for soil layer construction such as sand, cohesive soil and silty soil.

Scew Rotary auger Drilling Machine is widely used in various foundation construction of grouting piles, continuous wall and foundation reinforcement.

The rated power of rotary drilling rig is generally 125KW.

The output torque is 120-400kN·m, the maximum hole diameter can reach 1.5~4m, and the maximum hole depth is 30m, which can meet the requirements of various large-scale foundation construction.

Normal models shall be wheeled auger drilling machine and crawler auger drilling machine.

Advantage of Rotary auger Drilling Machine:

1 - Advanced mobile type, quick to transfer from transportation to working mode.

2 - High safety standard, satisfying dynamic and static stability requirements, ensuring safe working

3 - Optimized luffing mechanism, working stable, easy to maintenance.

4 - Innovative drilling bucket depth measurement system, showing a higher accuracy than

5 - conventional Pile Driver.

6 - Bottoming protection and priority control function of main winch, making it easier to operate.

7 - Multi-stage of vibration-proof power head, ensuring it working more stable.

8 - Mast can adjust vertical property automatically, making it to drill more precise.

9 - Humanized cabin design, with large space.

10 - Secondary operating interface, more convenient using.

11 - Efficient energy-saving turbocharged water-cooled diesel engine.

12 - Excellent fuel system Advanced cooling system Intelligent Control System The main technical data of 15m big diameter scew rotary auger drilling machine: Name Wheeled rotary screw drilling rig

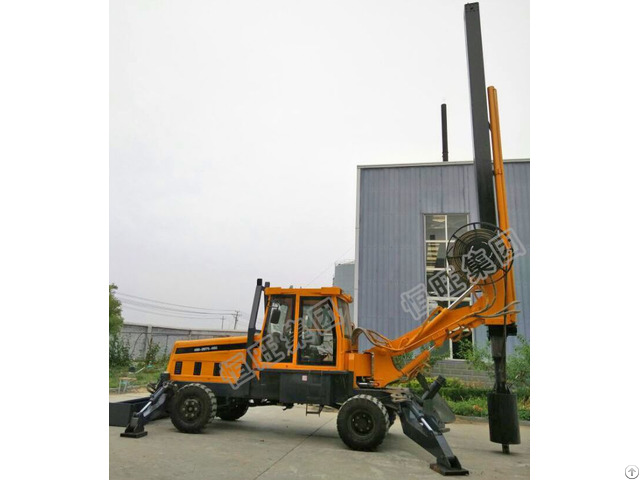

Model: HW12

Type: Wheeled

Engine: 6105 turbocharging/125kw

Gear Pump: CBJT2080

Drilling Diameter 500mm--1800mm

Max.

Drilling Depth 1500mm

Power head 125

Transmission 140

Scaling rod 40/16

Lifting 4-5Ton

Drill Bit weight 800kgs

Whole Machine weight 9000kgs

Overal Dimension: 8700mm*2200mm*3000mm

Rotary angle/ Big arm 180 degree

Fuel consumption 10L/h

Travel 50Km/h

Hydraulic system working pressure 20-25Mpa

displacement 80ml/r

Tyre size: 825-16/900-20

Distance between shafts 3250mm

The wheel base Front 1600mm rear 1260mm rotary auger drilling machine

Rotary Auger Drilling Machine Rotary Auger Drilling Machine Crawler rotary screw drilling rig Kindly be informed that : (1) The perpendicularity of the hole formation in the soil layer and the installation of the steel casing has a great influence on the verticality of the pile;

(2) The concrete casing for positioning and the steel casing are used in a reasonable manner, which can effectively shorten the positioning time of the drilling rig and improve the construction efficiency;

(3) Rotary buckets are used to make holes in soft rock and soil layer once; in hard rock, a spiral drill bit is used to make small holes, and then the rotary bucket is used to expand and expand into holes.

Looking for ideal Rotary Auger Drilling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative.

All the Scew Rotary Auger Drilling Machine are quality guaranteed.

We are China Origin Factory of 15m Big Diameter Auger Drilling Machine.

If you have any question, please feel free to contact us.
