Din53754 Taber Abraser - China

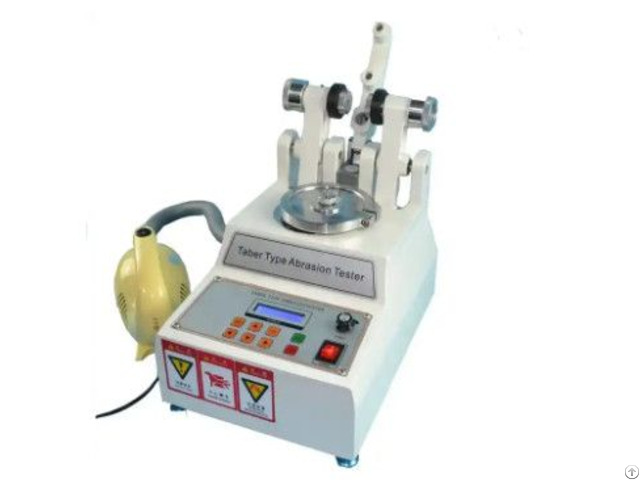

Taber abrasion tester -Din53754 Taber Abraser / Taber Abrasion Tester for Sale Taber abrasion tester is applicable to measuring for leather, fabric, coating, paper, floor tile, plywood, glass, natural rubber., etc.

By using the specified grinding wheel, and loading the weight on the specimen which cutted by knife.

setting up the rolling times.

then taking out the speciman, observe the status of the specimen after doing abrasion.

or calculate the different weight for the specimen before testing and after testing to get the abrasion indexer.

which equals to the abrasion loss weight/rolling times X 1000 the specified model of grinding wheel.

H18, H22, CS10, CS17, CS32, CS33 - Specification: 1 - Testing sheet: inner diameter(D)3mm

2 - Abrasion wheel: ∅2"(Max.

45mm)(W)1 /2"

3 - Centre interval for abrasion wheel : 63.5mm

4 - Interval for abrasion wheel and testing sheet: 37~38mm

5 - Rotating speed: 60-72r/min(can be adjustable)

6 - Load: 250, 500, 1000g

7 - Counter: LED 0~999, 9999

8 - Distance from testing sheet to suction inlet: 3mm

9 - Dimension: 45×35×42 cm

10 - Weight: 30kg

11 - Power supply: AC 220V, 10A

12 - One pair of imported grinding wheel H-18;One set of cleaner Standards: DIN53754, 53799, 53109, 52347, TAPPI T476, ASTM-D1044, D3884, ISO 54701, ASTM D 4060 Tag:

taber abraser, taber abrasion tester, taber, abraser, taber abraser tester, taber type abrasion tester, tester, taber abrasion resistance tester, taber industries, taber abrader, abrader, taber abrsion tester, leather taber abrasion tester, taber tester, t270 taber abrasion tester, taber abrasion tester price, fabric taber abrasion tester, taber test, taber abrasion tester for sale, taber abrasion testing machine, teledyne taber, taber abrasion testing equipment ps: (WLJCDM809)
