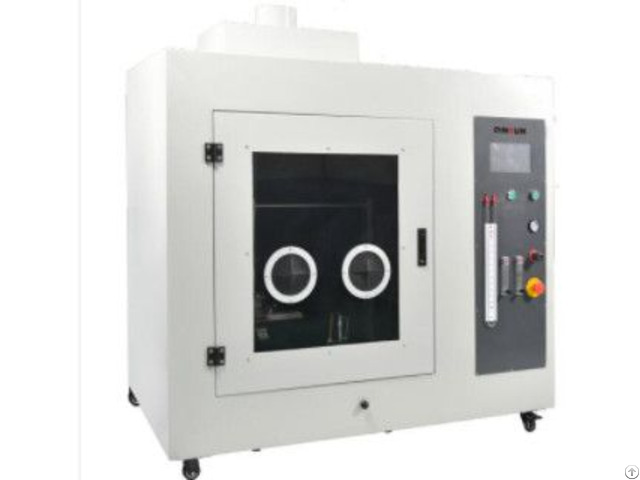

Touch Screen Control Auto Interior Horizontal Combustion Tester - China

Touch screen control auto interior horizontal combustion tester Touch screen control auto interior horizontal combustion tester main parameters

1 - Seven-inch full-color touch/display:

a.

Size: 7 inch effective display size 15.5cm long and 8.6cmb wide.

resolution: 800*480

c.

Communication interface RS232, 3.3V CMOS or TTL, serial mode d.

Storage capacity: 1G

e.

Using pure hardware FPGA drive display, "zero" start-up time, power on can run

f.

M3 + FPGA architecture, M3 is responsible for instruction resolution, FPGA focus on TFT display, speed and reliability are ahead of similar programs g.

The main controller are low-energy processor, automatically enter the energy-saving mode

2 - Experimental data can be stored in the touch screen, you can access to query the historical data.

3 - After recording the burning time equipment automatically calculates the test results burning speed (also known as the burning rate).

4 - large fume cupboard, really meet the requirements of GB8410-2006; direct contact with the test flame combustion chamber as a whole using stainless steel, high durability.

5 - timing accuracy 0.1s.

6 - Bunsen burner (i.e. burner) to the specimen applied flame 15s.

7 - Bunsen burner tube inner diameter 9.5mm + 0.1mmm, about 100mm long.

8 - test inclination: Bunsen burner 90 ° vertical to the horizontally placed sample burning.

9 - flame height: 20mm Shi2mm to 100mm Shi2mm adjustable (generally adjusted to 38mm).

10 - application of flame time: 0-999.9s soil 0.1s adjustable (generally selected as 15s).

11 - Continuity of combustion time: 0-999.9s ± 0.1s, observe the flame to reach the first mark after the manual start, manual pause.

12 - combustion gas: liquefied petroleum gas or gas.

13 - Wind speed control/testing device (optional).

14 - Dimensions: L * W * H 1310 * 650 * 1560mm (including feet) internal combustion box length 383mm width 205mm height 355mm.

15 Ventilation area: >0.75 cubic meters, length * section * height about 1050mm × 640mm × 1300mm, background black, background illumination ≤20Lux.

ps: (WLJCDM809)
