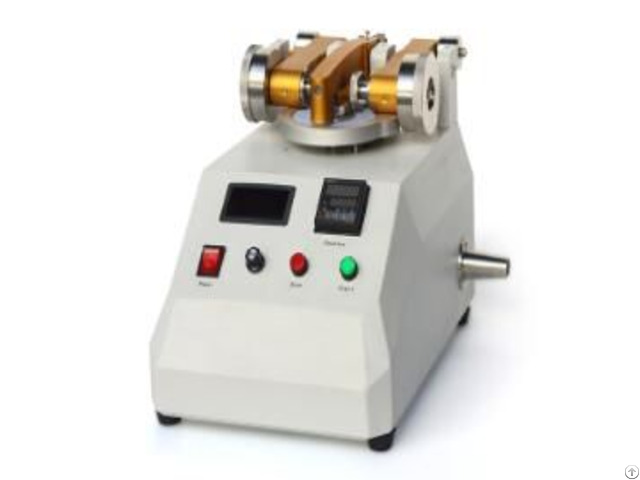

Multifunctional Textile Taber Abrasion Tester - China

Multifunctional Textile Taber Abrasion Tester Standards compliant: ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799, etc.

multiple standards Scope of application: Testing includes wear resistance of metals, coatings, sheet surfaces, coating materials, textiles, leather, rubber, etc.

Applications: suitcases, carpets, cardboard, clothing, glass, plastic coatings, ceramic tiles, metal coatings, paints, varnishes, decorative foils, high pressure foils, plastics, textiles, resilient floor mats, traffic paints, anodized coatings, blankets, Electronic components, decorative panels, waxes, labels, leather cases, dental materials, automotive interior trim, resins, furniture, etc.

Experimental principle: The "X" type of friction is produced by the rotation of a pair of friction wheels.

Equipped with a full set of auxiliary weights, sample clamps, friction wheels, vacuum devices, membrane control keyboards and electronic counters.

product details: The Taber abrasion resistance tester is mainly used to test the abrasion resistance of leather and plastic materials by means of rotary grinding, using different types of friction wheels to rotate on the sample.

Select standard applicable weight sets to test material properties.

Detect weight loss on the outer surface of the sample, such as obvious mechanical damage.

Specifications: Test piece: outer diameter 108mm, inner diameter 8mm, 3mm (D) Grinding wheel: diameter is 2"(M*45mm) 1/2"(W) Wheel center spacing: 63.5mm The distance between the center of the grinding wheel and the test disc: 37～38mm Rotation speed: 60/72rpm Severe weight: 250g, 500g, 1000g Counter: LCD, 0～999.999 Volume: 530 × 320 × 310 + vacuum cleaner Weight: 18kg (without vacuum cleaner) Power supply: 1φ, 220v/50HZ Calculation formula of wear index: wear loss weight / formula number of revolutions × 100 11-4

ps: (WLJCDM809)
