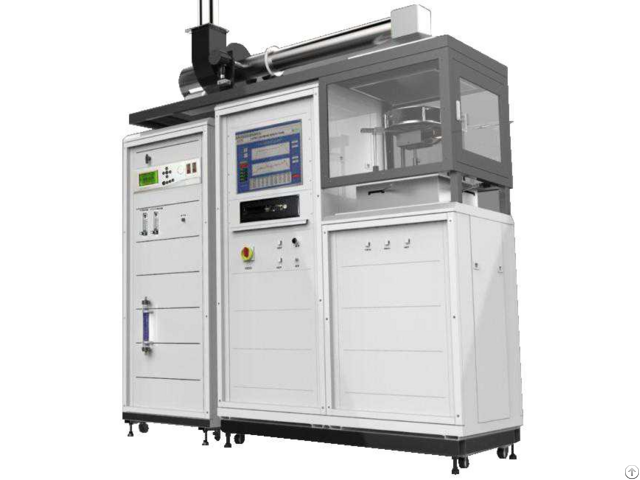

Iso5660 Astm E1354 Gbt16172 Cone Calorimeter - China

Iso5660, astm e1354, gbt16172 cone calorimeter the cone calorimeter is a core measurement parameter when evaluating the fire behavior of materials and products.

the cone calorimeter meets all existing standards (including iso 5660, astm e 1354, astm e 1474, astm e 1740, astm f 1550, astm d 6113, nfpa 264, can ulc 135 and bs 476 part 15), and can also be purchased in component form, so that if a laboratory needs specific tests such as heat release, mass loss, smoke generation, etc., the required parts can be purchased first and then gradually supplemented with other instruments the same test chamber becomes a complete specification instrument.

this flexibility is one of the many advantages of the cone calorimeter.

the test theory of the cone calorimeter is based on the fact that pure burning calories are proportional to the amount of oxygen burned.

every 1kg of oxygen burned will produce 13.1 mj/kg of gas.

the heat emission of the test gas, ignition time, oxygen consumption rate, co, co2 generation rate, the gas flow will be measured.

model: ttech-gbt16172 standard

• iso 5660: tests for response to fire - heat release rate, smoke generation rate and mass loss rate

• astm e 1354: standard test method for thermal and visual smoke emission rate of materials

• bs 476 pt.

15: testing of building materials and building structures: – methods of testing product heat release rates

• gb/t 16172-2007 test method for heat release rate of building materials

• nfpa 264 structural features

1.1, 19-inch standard cabinet integrated design, beautiful and easy to operate

1.2 - cone heater - in truncated cone, 230v, 5000w, heat output is 0~120 kw/m2

1.3, 19” touch screen computer controls the whole testing process

1.4, automatic ignition system, automatic measurement of burning time

1.5, 3 k-type thermocouples and 3-phase pid temperature controller to control the temperature

1.6 - automatic split gate - to protect the sample area before testing, to ensure stable initial quality measurement, and the operator can have extra time for system testing before the test starts.

for flammable samples, it is easy to burn prematurely if there is no opening and closing mechanism.

this extra time is very important for the operator

1.7 - sample holder - the sample size is 100mm x 100mm and the thickness does not exceed 50mm tag:

cone calorimeter, skyline: cone calorimeter, calorimeter, cone calorimeter test, cone calorimeter method, skyline: cone calorimeter, en 45545-2 cone calorimeter, heat release cone calorimeter, heat release rate cone calorimeter, astm e1354 heat release cone calorimeter, cone calorimeter fire testing equipment, cone calorimeter with imported oxygen analyzer, cone calorimetry, cone test, tutorial, smoke generation rate test, engineering ps: (wljcdm809)
