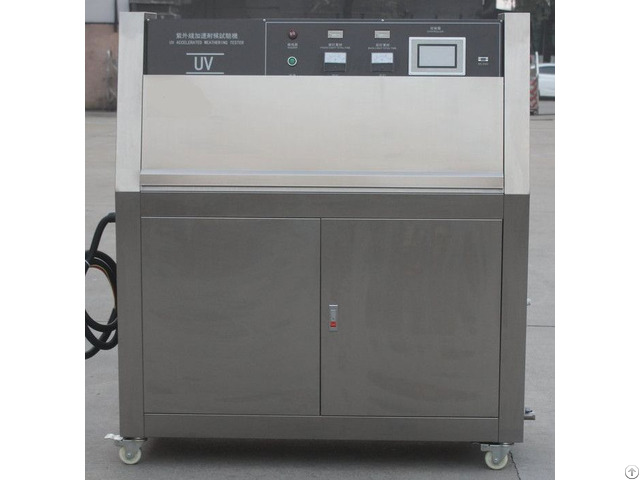

Fabric Uv Aging Test Chamber Support Customer Customization - China

fabric uv aging test chamber support customer customization The UV aging test chamber is one of the Aging chambers.

The UV aging test chamber also called weather accelerates the aging test chamber, UV weathering chamber.

chamber.

Parameters:

1 - Lamp brand: the United States ATLAS original imports

2 - Lamp model: UVA-340 (315-400nm)

3 - Number of lamps: 8 (can also be customized more)

4 - Sun eye accuracy: ±5%

5 - Irradiance range: 0.45 ~ 1W/m2 adjustable

6 - The center distance between the lamps: 70mm

7 - Sun-eye online monitoring advantages: extend the life of the lamp

8 - Test products and the center of the lamp distance: plate base frame test plate (adjustable up and down); can also choose the standard slicing models.

9 - radiation intensity: lamp power output hold

10 - Temperature range: 50 ℃ ~ 70 ℃ adjustable

11 - Blackboard thermometer: 45 ~ 80 ℃

12 - Humidity range: ≥ 90% RH

13 - Temperature fluctuation: ± 3 ℃

14 - Temperature resolution: 0.1℃

15 - Tolerance: ±3℃

16 - Spraying: 4 nozzles

17 - Temperature control mode: PID self-tuning temperature control mode UV weathering test bench environmental conditions.

Power requirements: 220V ± 5%, single-phase three-wire, 50Hz, 8A, 10A slow fuse required.

Environment: 5 ~ 35 ℃, 0 ~ 80% RH, good ventilation, clean indoor environment.

Working area: about 234×353cm

Drainage: Drainage ditch is required on the floor near the main unit.

For easy movement, casters are installed at the bottom of the instrument, and the position is fixed with U-shaped ring to fix the position of the testing machine.
